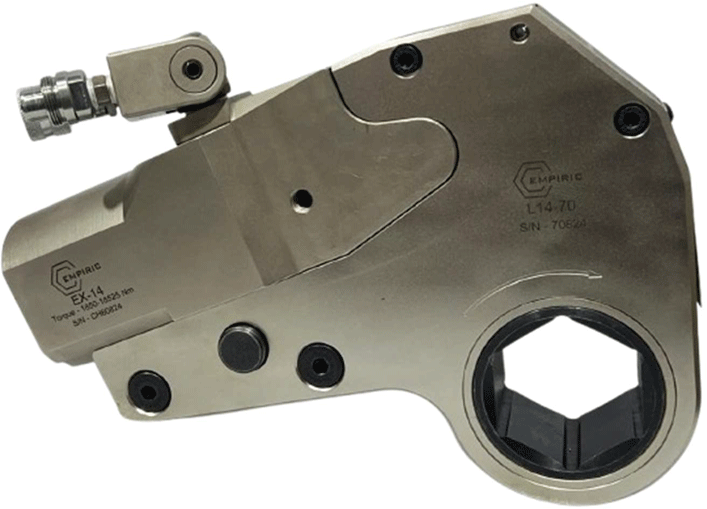

The Empiric Series Low Clearance Hydraulic Torque Wrench is engineered for the most inaccessible bolting areas found in the industry. Our Low Clearance Hydraulic Torque Wrench features a low-profile hex link with a long neck, short height and small radius with superior torsional strength and a fast operation cycle. The 360°/180° Uniswivel allows for safe, convenient hose adjustments. Bolt hands-free with the optional tool retainer, keeping your hands safer. Tackle every bolting job, even in hard-to-reach areas, with the reliable performance
SPECIFICATIONS:
Low Weight, High Strength Design
Superior Torsional Strength
Fast Operation Cycle
Fine Tooth Pawl
Floating Piston Design
Auto-Connect Drive Piston
Compact Frame Size
Rigid Steel Body Construction
Internal Swivel Manifold Relief
Built-in Reaction Pad
Small Nose Radius
Tool Free Link Change
Corrosion Resistant Finish
Multi-Axis High Flow Swivel Manifold
Simple Design
Consistent Torque Output
Technical Data
Technical Data
Units
EX - 2
EX - 4
EX - 8
EX - 14
EX - 32
Min Torque
Nm
295
595
1050
3051
4990
Ft.Lbs
216
437
772
2243
3669
Max Torque
Nm
2950
5950
10950
21000
41890
Ft.Lbs
2169
4375
8051
15441
30801
Hex Across Flat
mm
24 - 55
36 - 65
41 - 90
50 - 110
110 - 155
Inch
1.1/16 - 1.3/8
1.7/16 - 2.9/16
1.5/8 - 3.1/2
2 - 4.5/8
4.5/8 - 6.1/8
Drive Unit Weight
Kg
1.56
3.5
5.27
10
15.2
Lbs.
3.15
7.7
11.63
22
33.44
Ratchet Unit Weight
Kg
1.97
4.3
7.02
13
34.5
Lbs.
4.3
9.4
15.44
28.6
77.66
1) Self-lubricating low Nickel Bronze for drive bush to protect body from wear.
2) Fine Ratchet and Pawl for better engagement.
3) Auto engagement of rod in first stroke
4) Leak proof quick connecting coupler.
5) 360°x180° swivel for better degree of movement.
6) Hard chrome plating of piston rod for wear resistance.
7) High quality seals for high pressure.
8) Torsion free reaction pad.
9) Never-Lock drive pawl.
10) Lock Pin

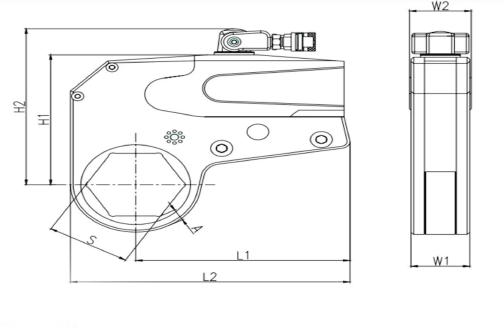

Technical Data
EX - 2
EX - 4
EX - 8
EX - 8
EX - 32
Overall Length L mm
(inch)
171
220
287
331
445
6.73
8.66
11.29
13.03
17.51
H1 mm
(inch)
110
146
186
211
283
4.33
5.74
7.32
8.31
11.14
H2 mm
(inch)
114
185
225
253
323
5.66
7.28
8.85
9.96
12.71
W1 mm
(inch
33
41.5
53.3
64
84
1.29
1.63
2.11
2.51
3.30
W2 mm
(inch)
34.5
50.5
62.5
82
94
1.35
1.98
2.46
3.22
3.71
A min mm
(inch)
9.5
15
22
24
27
0.37
0.59
0.86
0.94
1.06
A max mm
(inch)
14
20
26
31
33
0.55
0.78
1.02
1.22
1.29

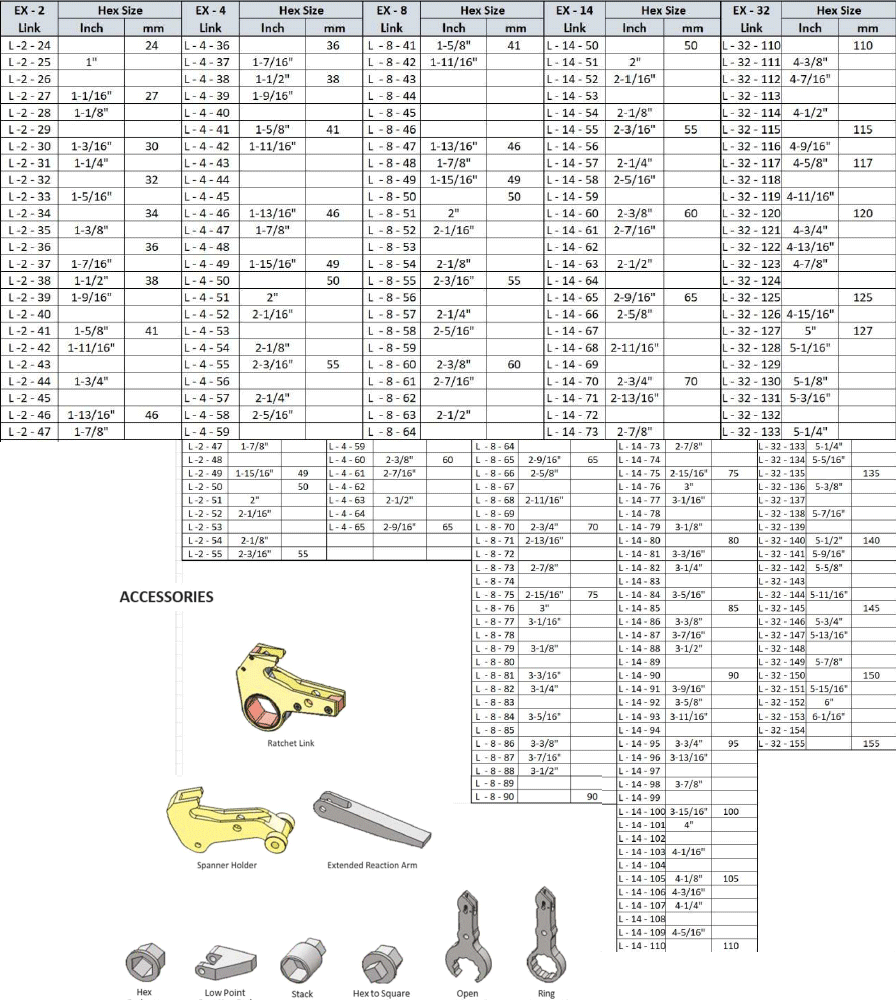

EX LINK SELECTION
• Superior Torque Control: Designed with high precision and accuracy.
• More accurate and easier to use, since the wrench directly operates on the nuts
• 360x180 degree swivel allows the wrench to operate freely in confined areas.
