A Hydraulic Torque Wrench is a high-precision, high-force tool engineered to apply a specific torque to a fastener using hydraulic pressure. It is primarily used for tightening and loosening large bolts and nuts in heavy-duty industrial environments where precision, safety, and power are critical.

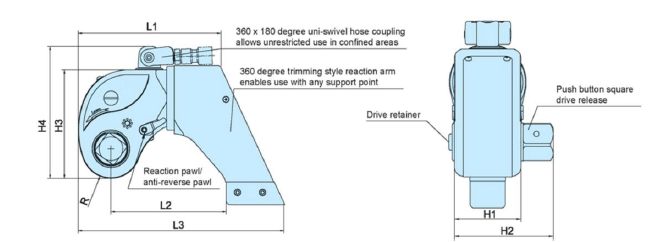

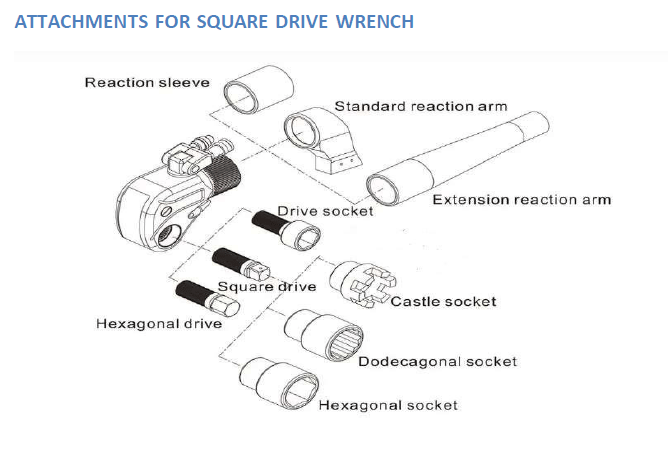

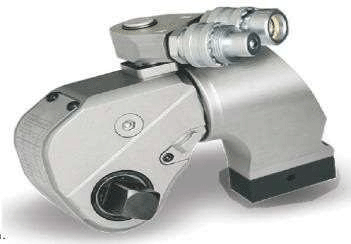

EMPIRIC Hydraulic Square Drive Wrench is robust, powerful and accurate. Can be used with a standard set up or customize with our wide range hydraulic torque wrench accessories. The ESH splined square drive distributes load evenly through the drive components, providing full heavy-duty transmission of force.
SPECIFICATION
• Ergonomic design minimizes fatigue and strain, prioritizing operator comfort and ease of use.
• Ensures exceptional durability and lightweight handling.
• One-Way Ratcheting Mechanism: Provides efficient fastening and accuracy.
• Ratchet Freeing Mechanism: Allows for smooth and precise bolt loosening.
• Multi-Axis 360°-180° Swivel: Offers unmatched versatility and access in confined spaces.
• Quick connect no-drip coupler
• Heat treatment on high stress component.
• High pressure seal design.
1) Self-lubricating low Nickel Bronze for drive bush to protect body from wear.
2) Fine Ratchet and Pawl for better engagement.
3) Auto engagement of rod in first stroke
4) Leak proof quick connecting coupler.
5) 360°x180° swivel for better degree of movement.
6) Hard chrome plating of piston rod for wear resistance.
7) High quality seals for high pressure.
8) Torsion free reaction pad.
9) Never-Lock drive pawl.
10) Lock Pin

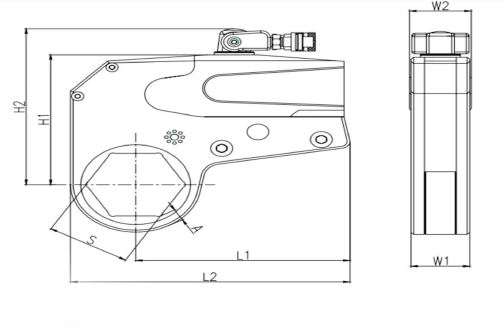

Technical Data
EX - 2
EX - 4
EX - 8
EX - 8
EX - 32
Overall Length L mm
(inch)
171
220
287
331
445
6.73
8.66
11.29
13.03
17.51
H1 mm
(inch)
110
146
186
211
283
4.33
5.74
7.32
8.31
11.14
H2 mm
(inch)
114
185
225
253
323
5.66
7.28
8.85
9.96
12.71
W1 mm
(inch
33
41.5
53.3
64
84
1.29
1.63
2.11
2.51
3.30
W2 mm
(inch)
34.5
50.5
62.5
82
94
1.35
1.98
2.46
3.22
3.71
A min mm
(inch)
9.5
15
22
24
27
0.37
0.59
0.86
0.94
1.06
A max mm
(inch)
14
20
26
31
33
0.55
0.78
1.02
1.22
1.29

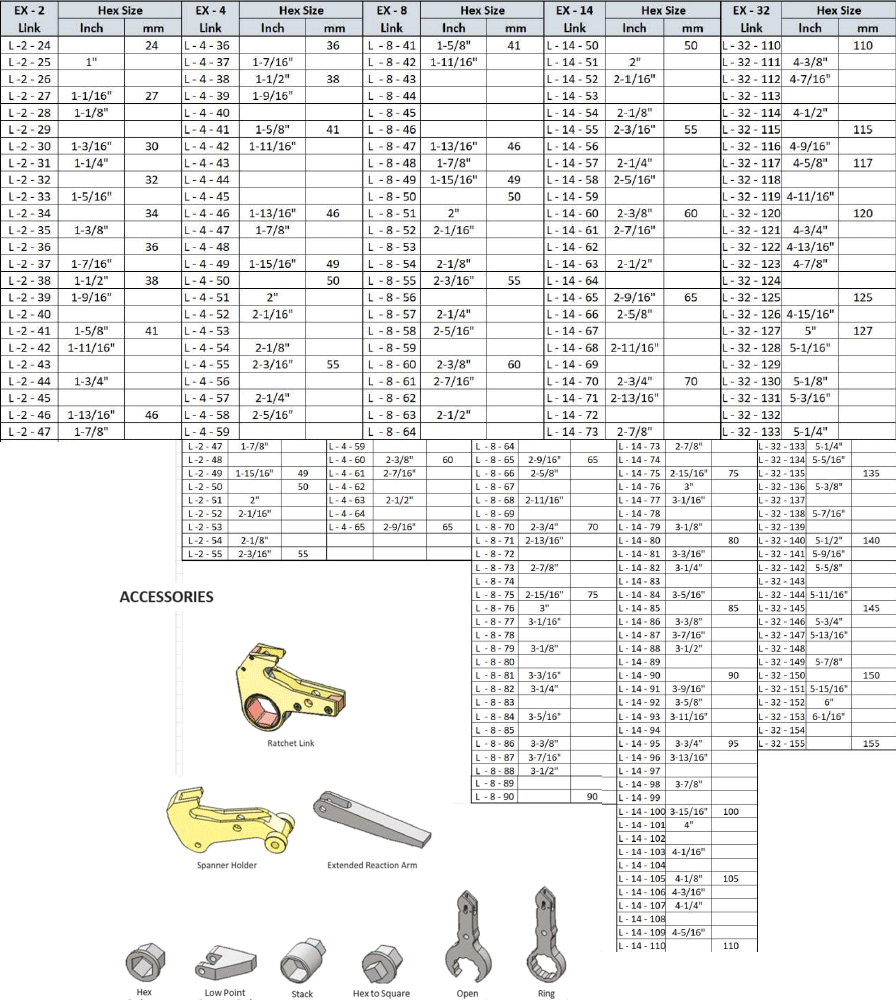

EX LINK SELECTION
• Superior Torque Control: Designed with high precision and accuracy.
• More accurate and easier to use, since the wrench directly operates on the nuts
• 360x180 degree swivel allows the wrench to operate freely in confined areas.
